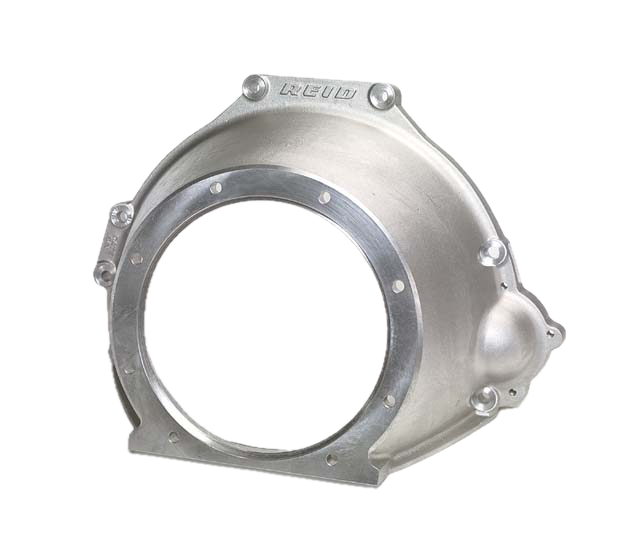

BH050 - Powerglide/TH400 Modular Coyote Ford Bellhousing

Modular/Coyote Ford bellhousing for the Reid Racing 2 piece Superglide and Super Hydra 400® cases fits 4.6, 5.4, and 6.8 liter overhead cam engines, as well as the new generation of “Coyote” 5-liter V8s (including the 7.3 Raptor). Cast from high-strength aluminum and heat treated for additional toughness, the bellhousing passes the stringent SFI 30.1 certification* and is approved with no external shields required.

The bell features an open bottom for easy converter access, a reduced diameter for better floorboard clearance, and a contoured mounting flange to properly match the rear of the engine block.

Designed for use with a 164 tooth flexplate, stock style starters are used in the factory location.

GIVEN OUR PROPRIETARY CASE FLANGE, ALL REID RACING BELLHOUSINGS ARE DESIGNED TO BE USED WITH THE APPROPRIATE REID RACING AFTERMARKET CASES ONLY
